A+K orifice plate flowmeter

Standard sharp Angle orifice plate designed and manufactured in accordance with GB2624:2006/ISO5167-2003 specification;

It has the characteristics of low price, convenient installation and maintenance;

Used for measuring gas, liquid and steam and other media;

We can provide all non-perforated plates, including small hole plate, round hole plate, eccentric hole plate, 1/4 round hole plate, conical entrance hole plate, wear-resistant hole plate and other products.

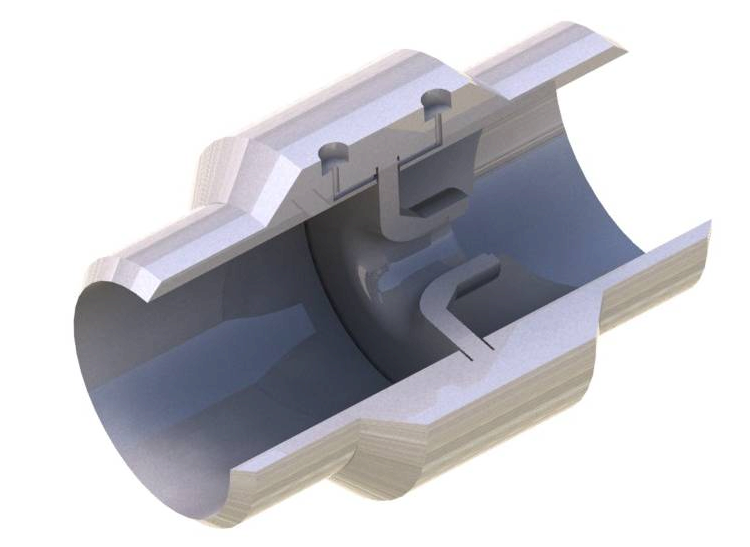

A+K nozzle flowmeter

Design and manufacture nozzle throttling device in accordance with GB2624:2006 / ISO5167-2003 specification;

It has the advantages of high strength, impact resistance, wide measuring range ratio, small pressure loss and large measuring range.

According to the design and application of the product to provide different structure of the throttling device;

It is often used to measure the fluid flow rate of high temperature, high pressure and steam heat network pipelines in power plants.

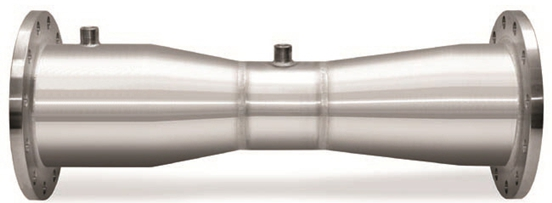

A+K Venturi flowmeter

A throttling flow measuring sensor is designed and manufactured in accordance with GB2624:2006 / ISO5167-2003 specification.

It has the characteristics of high measuring accuracy, small pressure loss, not easy to wear, good long-term stability, etc.

Often used as a trade settlement type flow measurement component, used for steam, natural gas, petrochemical media accurate measurement;

In ISO5167 specification of several flowmeters, Venturi required the upper and downstream straight pipe section of the shortest, the smallest permanent pressure loss.

A+K adjustable orifice flowmeter

NASA space technology and industrial technology fusion, the most cost-effective porous flow measurement products

The A+K adjustable orifice flowmeter is based on NASA's porous balanced rectifier technology. It has the characteristics of compact structure, high system accuracy, wide measuring range, short straight pipe section requirements, and convenient field installation.

Thin sheet structure design, the structure is more compact and simple for process measurement occasions;

Inherit all the performance advantages of porous throttling;

The angular pressure connection method has greater differential pressure measurement;

Fast delivery based on standard piping design;

characteristic:

Reduced procurement and installation costs compared with traditional construction;

Measurement accuracy ±0.5%, ±0.75%, repeatability 0.1%;

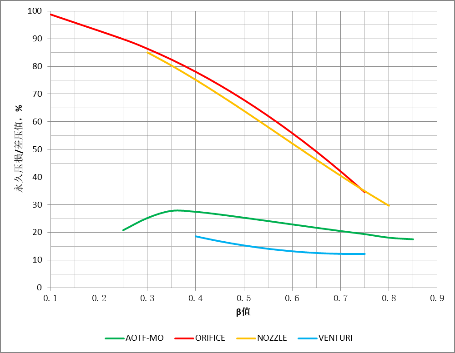

Compared with orifice plate, it can save 30%~50% operation energy consumption;

Save 90% straight pipe section demand;

Reduce the field workload, reduce the leakage point, reduce the total input;

Optional integrated valve group or universal three-valve group, easy maintenance and replacement;

Strong and durable, reduce energy consumption, improve production efficiency;

Using centering ring design to ensure installation accuracy;

Material with SS304 and SS316 optional, others can be customized;

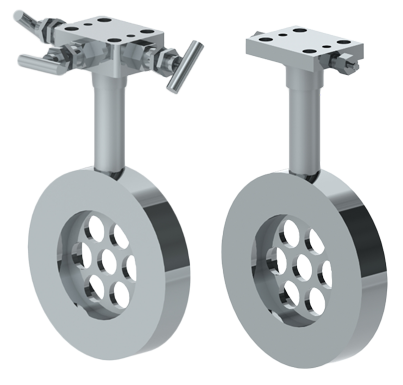

Universal valve group platform structure

A general valve assembly platform is provided on the adjustable orificum plate, which can be directly connected with the general H-type valve bank and then connected to the transmitter to form an integrated flowmeter. The process connector can also be configured for separate installation with the three valve banks and transmitters.

Integrated three-valve structure

The adjustable orifice plate is equipped with an integrated three valve group. The integrated three valve group is not detachable and can be directly connected with the transmitter to become an integrated flowmeter. The process connector can also be installed separately with the three valve group and the transmitter.
